Selmi Coating Pan - Comfit

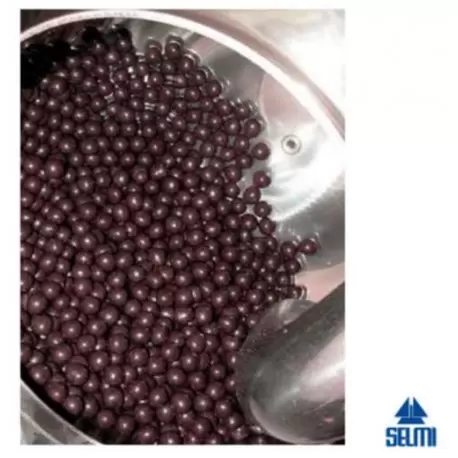

The coating pan is made entirely of AISI 304 steel and is equipped with an electronic speed control to optimise the coating of different types and sizes of products. Cool air controlled by a cooling system can be introduced into to the coating pan speeding up the engrossing process. Warm air can also be introduced to aid in the smoothing and polishing of products and to help with cleaning the machine. The optional spray system is programmable to automatically spray chocolate at the desired time and required quantity.

TECHNICAL DATA:

Tank capacity 20 kg.
Hourly production about 20 kg/h.
Power consumption 1.8 kW - single phase 220 volt.
Cooling system 1100 frigorie/h
Dimensions h. 1450 mm., w.700 mm., d. 900 mm.
Air filter changeable

IT NEEDS TO BE CONNECTED TO A COMPRESSED AIR
SUPPLY. (4 ATM CON 100 L/Min).

CHARACTERISTICS:

• First coating pan on the market to be equipped with a cooling system.
• Production speed: 20 Kg/h of truffled product.
• Rapid change between cold and hot air.
• Can be equipped with automatic SpraySystem.
